Develop an internal transport system for large-scale products across a factory more than 100 metres long while interfacing with existing equipment, production data and AGVs.
A modular conveyor system with automated flow management, SCADA visualization, product tracking, AGV fleet integration and wireless tablet control across the installation.
Control from different operator locations, product tracking through SCADA and full integration with the AGV Fleet Management System.
Production context, equipment design, scope of delivery and verified customer value.
The customer needed a conveyor system for internal transport and distribution of large-scale products across a factory more than 100 metres long.
The new equipment had to interface with the existing production infrastructure to exchange production data, support product tracking and distribution, and communicate with Automated Guided Vehicles.
The physical scale of the factory also meant operators needed practical access to system control from different locations.

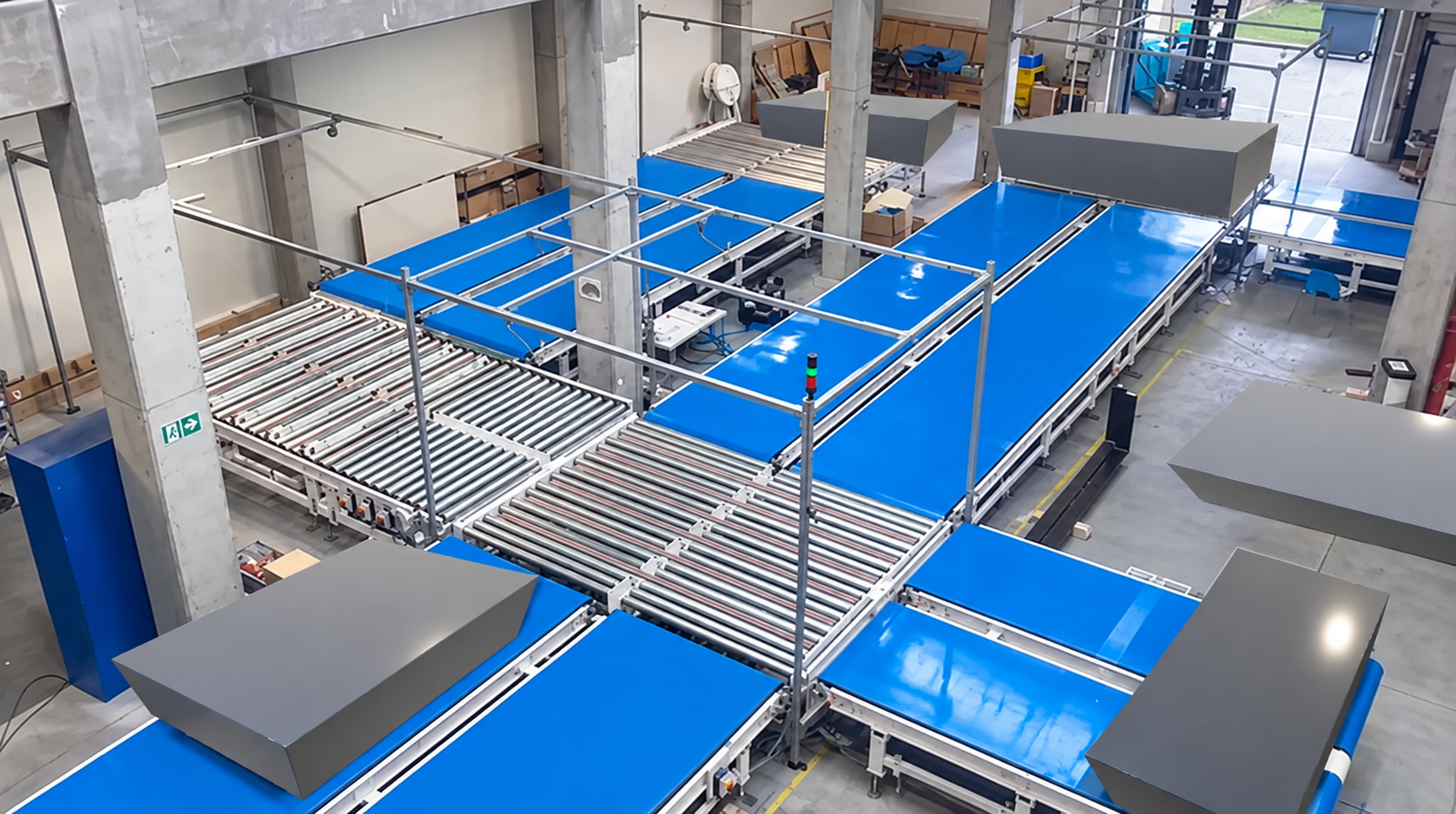

DIS Systems developed a modular conveyor system around the existing factory layout and equipment.
The project included site investigation, concept generation, layout optimization, equipment simplification and cost optimization together with the automation architecture and material-flow logic required to coordinate transport through the system.

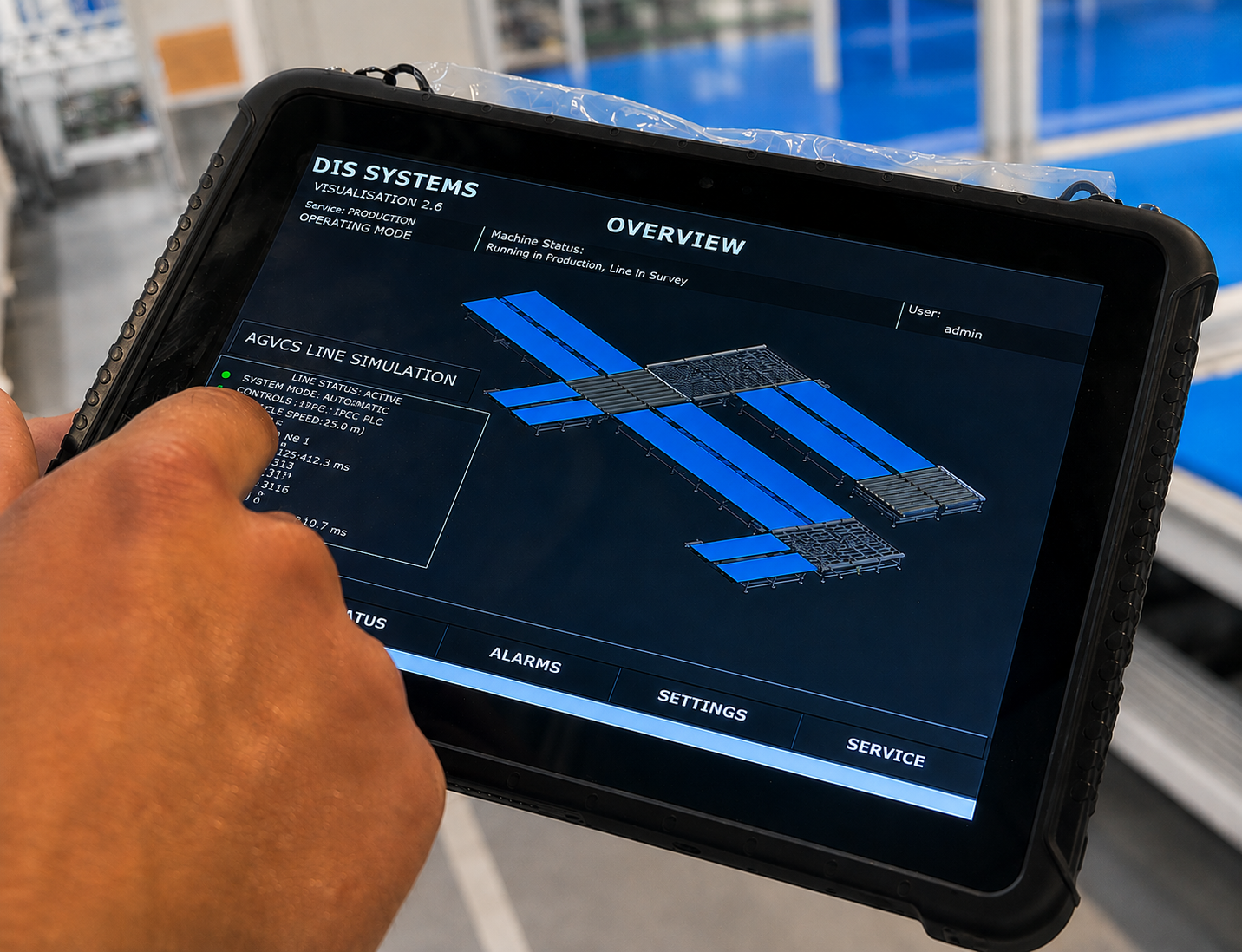

The conveyor system integrates with the AGV Fleet Management System and incorporates SCADA visualization for product tracking and system information. Because of the physical scale of the installation, wireless tablet control was implemented so operators could access the system from different locations.
A modular build strategy supported transport and installation at remote customer locations worldwide.
SCOPE OF DELIVERY
Site investigation and existing-equipment review
Concept generation
Layout optimization
Cost optimization and simplification
Automation and flow-management design
Safety procedures and system boundaries
Manufacturing and Factory Acceptance Test
Onsite commissioning and Site Acceptance Test
Site investigation, Conveyor engineering, Concept generation, Layout optimization, Cost optimization, Equipment simplification, Material flow design, Automation engineering, Production data interface, Product tracking, SCADA visualization, AGV integration, Fleet management integration, Wireless control, Tablet control, Safety procedures, Modular equipment design, Manufacturing, FAT, Commissioning, SAT
