Increase inspection and packaging capacity for highly customized glass panes while improving operator safety and ergonomics across significant variation in product size and weight.
A flexible one-piece-flow line combining roller conveyors, wrapping-paper cutting, flipping, strapping, side handling of heavy panes and on-demand cardboard preparation.
Inspection and packaging time reduced by 35%, with less cardboard stock and improved working conditions through elimination of heavy manual lifting.
Production context, equipment design, scope of delivery and verified customer value.
A/S J.N. Bech needed to improve the capacity of its inspection and packaging process for customized glass panes while improving operator safety and ergonomics.
The production mix included significant variation in pane size and weight, from smaller formats to large and heavy glass panes. The equipment therefore needed to support flexible handling across product variants while reducing manual lifting.

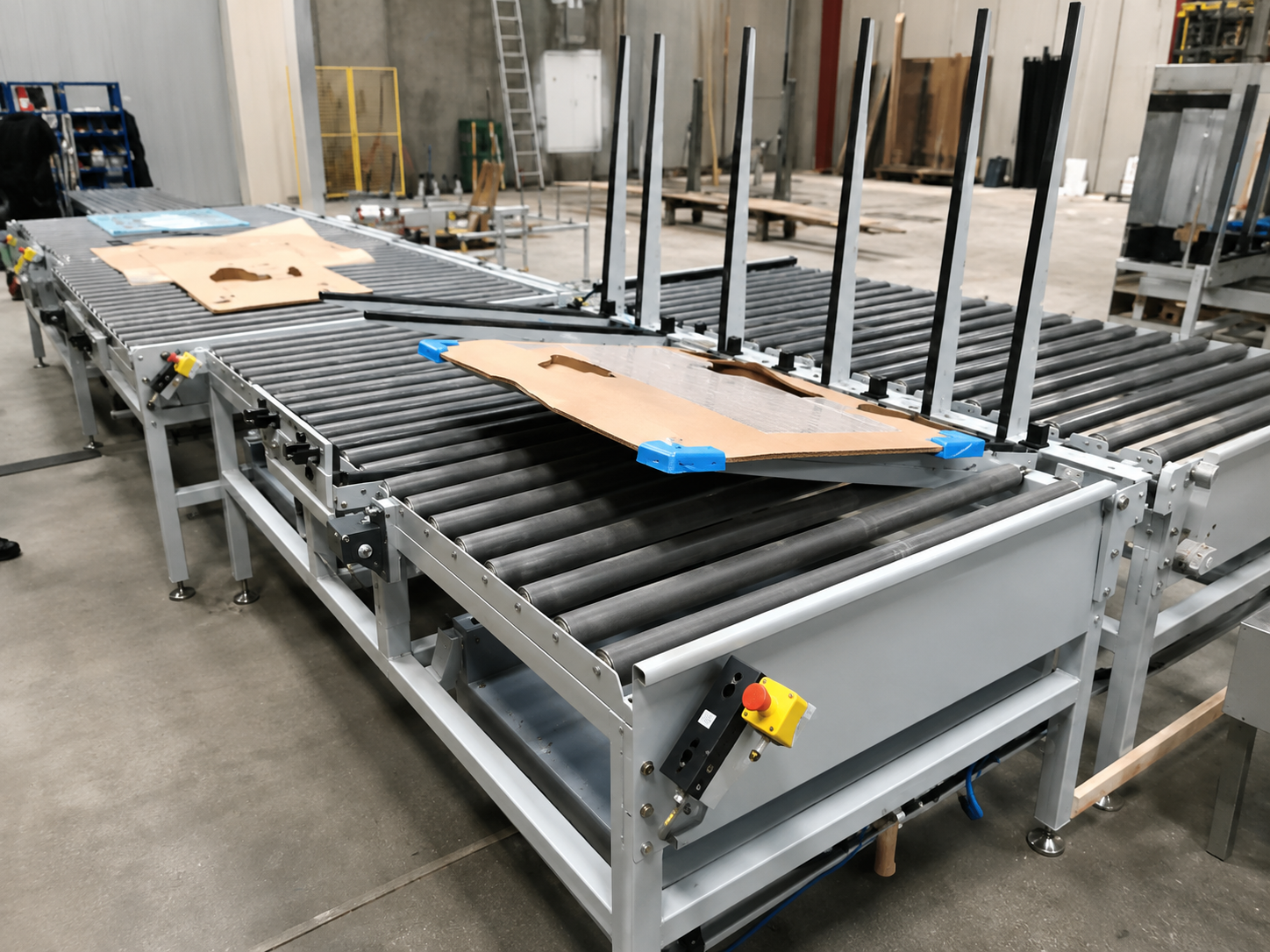

DIS Systems developed and delivered a flexible one-piece-flow packaging line for quality inspection and finished packaging.
The solution is based on customized standard equipment and combines roller conveyors, an integrated cutting table for wrapping paper, a flipping table, a strapping machine and side loading and unloading for heavy glass panes.
Custom-sized cardboard boxes are prepared on demand, reducing the need to hold packaging variants in stock. The line supports operation by one or multiple operators depending on the production requirement, with operator safety and ergonomics central to the handling concept.
The project included onsite observation, ideation and concept generation, mechanical and structural engineering, electrical and automation design, push-button operation, machine safety and CE marking, production and assembly, FAT, installation, SAT and onsite service support.
SCOPE OF DELIVERY
Onsite observation and concept generation
Mechanical and structural engineering
Electrical and automation engineering
Machine safety and CE marking
Production and assembly
Factory Acceptance Test
Installation and Site Acceptance Test
Onsite service and support
Onsite observation, Concept generation, Glass handling, Heavy-product handling, Material handling, One-piece flow, Roller conveyors, Wrapping paper cutting, Flipping table, Strapping integration, Side loading, Side unloading, On-demand cardboard preparation, Mechanical engineering, Structural engineering, Electrical engineering, Automation engineering, Push-button controls, Operator safety and ergonomics, Machine safety, CE marking, Production, Assembly, FAT, Installation, SAT, Onsite service
