Rotate and position large wind turbine main shafts safely during internal assembly while maintaining stable support and access to the required installation positions.
One rotation unit for two shaft variants up to 32 tonnes, combining controlled rotation, secure positioning and hydraulic levelling.
Safer access, stable positioning and one controlled assembly process supporting two shaft variants.
Production context, equipment design, scope of delivery and verified customer value.
Rotate and position large wind turbine main shafts safely during internal assembly.
The equipment had to provide access to the required installation positions while keeping the shaft stable and protecting components throughout the process.

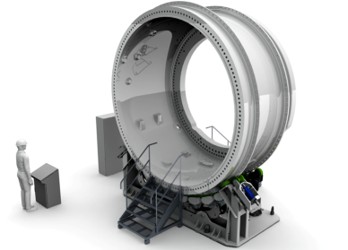

DIS Systems designed and delivered one rotation unit for two main shaft variants weighing up to 32 tonnes.
The system combines controlled rotation, secure positioning and hydraulic levelling so operators can install internal components at the required positions.
SCOPE OF DELIVERY
Concept development
Mechanical and structural engineering
Electrical and control system design
Hydraulic levelling system
Machine safety and CE marking
Manufacture and assembly
Factory Acceptance Test
Installation and Site Acceptance Test
Concept development, Mechanical and structural engineering, Electrical and control system design, Hydraulic levelling, Controlled rotation and positioning, Machine safety and CE marking, Manufacture and assembly, FAT, Installation and SAT
Built by DIS Systems. Backed by DIS/CREADIS.
