Lift, level and position nacelle bottom canopies with greater control while integrating with the existing transport frame and reducing gantry-crane use.
Three independently adjustable supports with synchronized HMI control, individual Z-axis adjustment and mobile integration with existing production equipment.
Controlled canopy positioning, easier adjustment and reduced reliance on the gantry crane during installation and tool handling.
Production context, equipment design, scope of delivery and verified customer value.
Lift, level and position the nacelle bottom canopy more safely and with greater control during installation.
The solution also needed to integrate with the existing nacelle transport frame, provide precise adjustment and reduce reliance on the gantry crane.

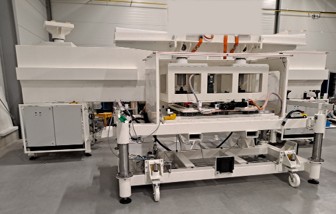

Three independently adjustable supports lift and position the canopy at the rear, left front and right front mounting points.
An HMI provides synchronized jog and step modes, with individual Z-axis control for final levelling. Master Mover technology and castor wheels support movement into position and integration with existing equipment.
SCOPE OF DELIVERY
Concept development
Mechanical and structural engineering
Electrical and control system design
Hydraulic levelling system
Machine safety and CE marking
Manufacture and assembly
Factory Acceptance Test
Installation and Site Acceptance Test
Concept development, Mechanical and structural engineering, Electrical and control system design, Hydraulic levelling, HMI and motion control, Machine safety and CE marking, Manufacture and assembly, FAT, Installation and SAT
Built by DIS Systems. Backed by DIS/CREADIS.
